Scope of application:

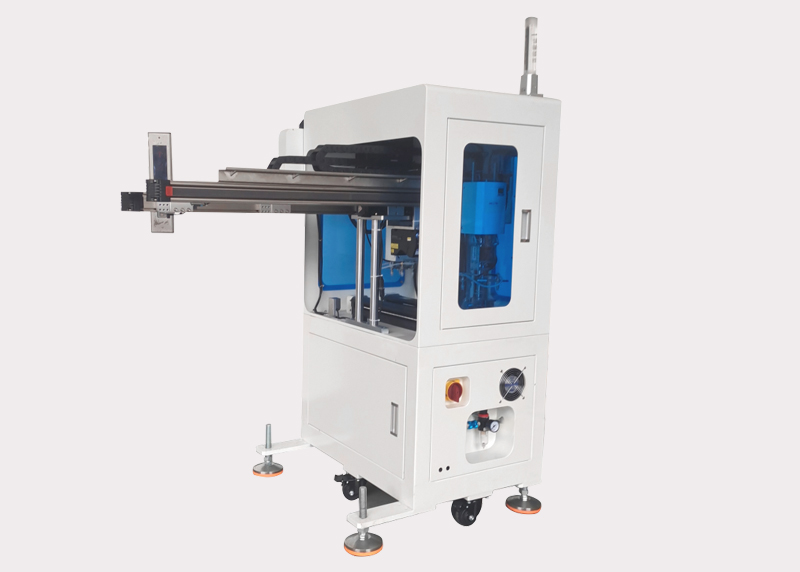

Flatness test of various mobile phone hardware shells and tablet computer hardware shells.
advantage:
1. The automatic operation of the equipment replaces labor, and the production capacity is 1200pcs/H.
2. It can test the inner flatness, outer frame flatness, step difference, X, Y direction deformation, and Z axis repeatability of um level of hardware and plastic parts such as mobile phone cases.
3. The modular design of the equipment makes it easy to replace the part number, only need to replace the part of the mechanism that is in contact with the product, saving the cost of replacing the part number.
4. The equipment can be placed next to the assembly line, which is convenient for erection, debugging and maintenance.
5. The equipment can automatically classify and place several types of defective products tested, which is easy to distinguish the types of defective products.
6. The equipment covers an area of only 1.1m2, saving space and improving space utilization.
| Project | Parameter | Describe |
| Dimensions | Length 800mm*width 1300mm*height 1400mm | |
| Test product size | Length 180mm, width 85mm | |
| Test accuracy | ±0.01mm | |
| Control System | Yuehe automatic flatness inspection machine control system V1.0 | |
| Power requirements | AC220V 50~60HZ | |
| Power | 600W | |
| Air pressure requirements | 0.5-0.8MPa | |
| Weight | 200KG | |
| Productivity | 1200PCS/H | |
| Equipment cost recovery cycle | 6 months | According to 80% equipment utilization rate |
|
